Phase Travel Adapter Quick Start GuideUpdated 10 days ago
Last Updated: January 15, 2026
The ELO Phase 140W Universal Gaming Travel Adapter is a high-output, global travel adapter engineered for gamers and power users. It supports fast charging across multiple devices simultaneously with PD 3.1 USB-C output up to 140W, universal plug compatibility, and an integrated AC outlet.
Designed for international travel, Phase delivers stable power across regions while protecting connected devices.

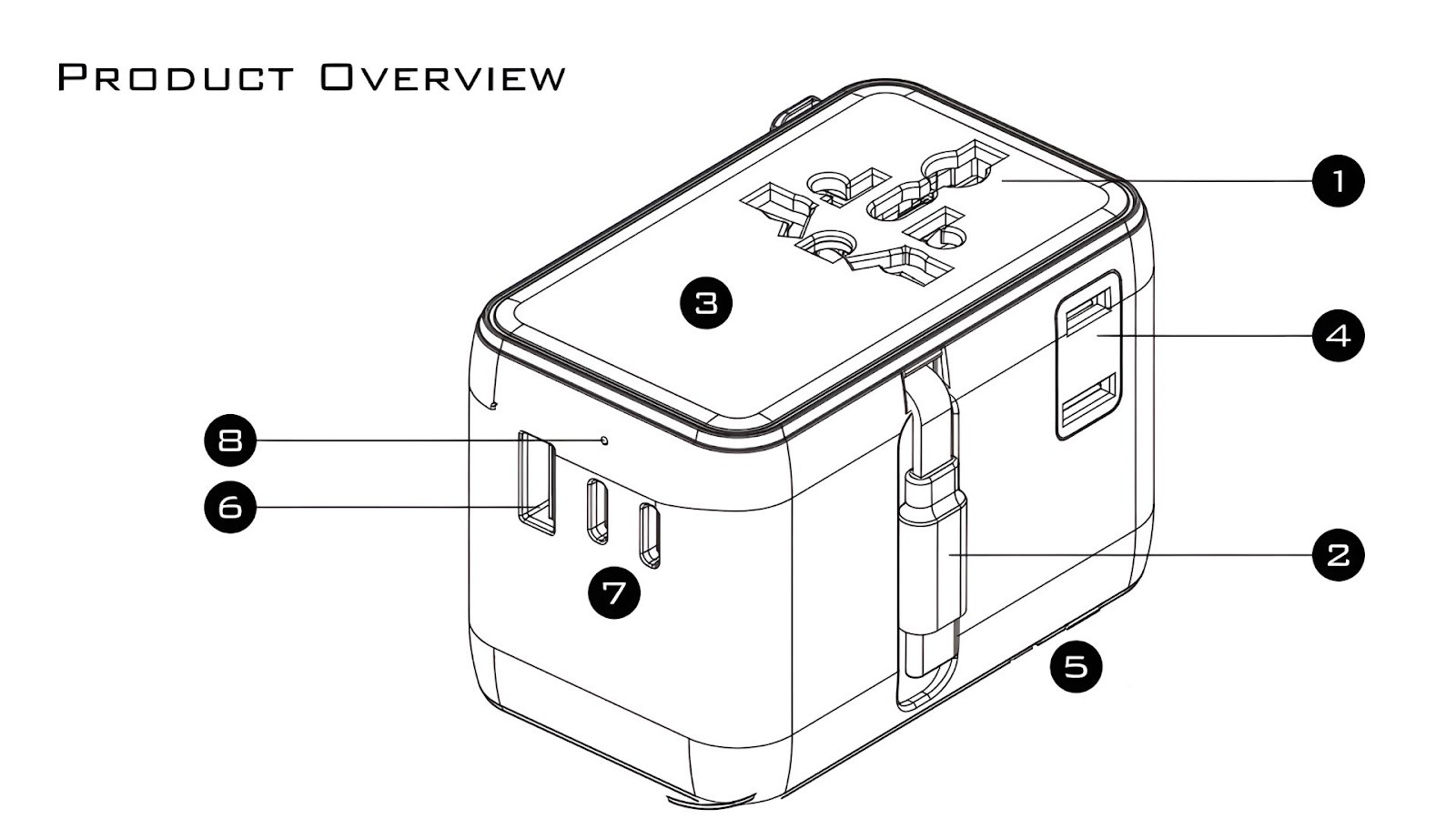

- Universal Travel Adapter (US, EU, UK, AUS)
- 1x USB-C 3.1 Retractable Charging Cable (75 cm +- 5 cm)
- Advanced GAN design for fast and efficient charging
- Dedicated US/JP socket
- Fuse and spare use
- 1x USB-A
- 2x USB-C 2.0
- LED Status Indicator
- Solid LED = Normal operation
- No LED = Possible overload; unplug a device and check again

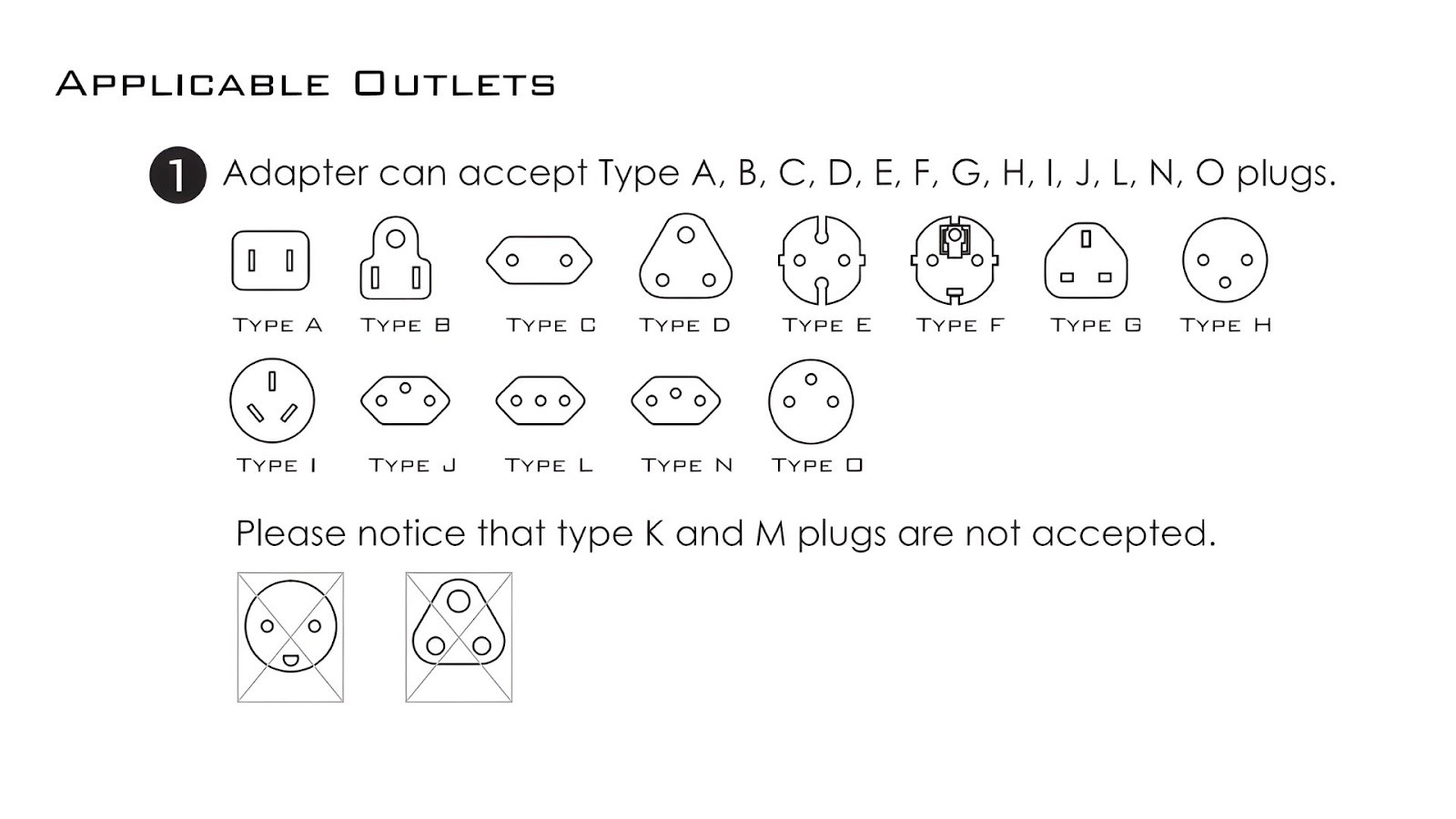

Supported Plug Types
Compatible Plug Types
The adapter works with the following wall outlets:
Type A, B, C, D, E, F, G, H, I, J, L, N, O
Not Supported
❌ Type K and M are not supported
⚠️ Only one plug can be extended at a time using the selector knob. Other plugs will automatically lock.
Plug Operation & Locking Instructions
- Slide the knob to extend your desired plug type
- Ensure the plug is fully pushed out
- Wait for the button to reset to the bottom position
- If the button doesn't reset, the plug isn't properly seated
- ❗ Never extend multiple plugs at the same time

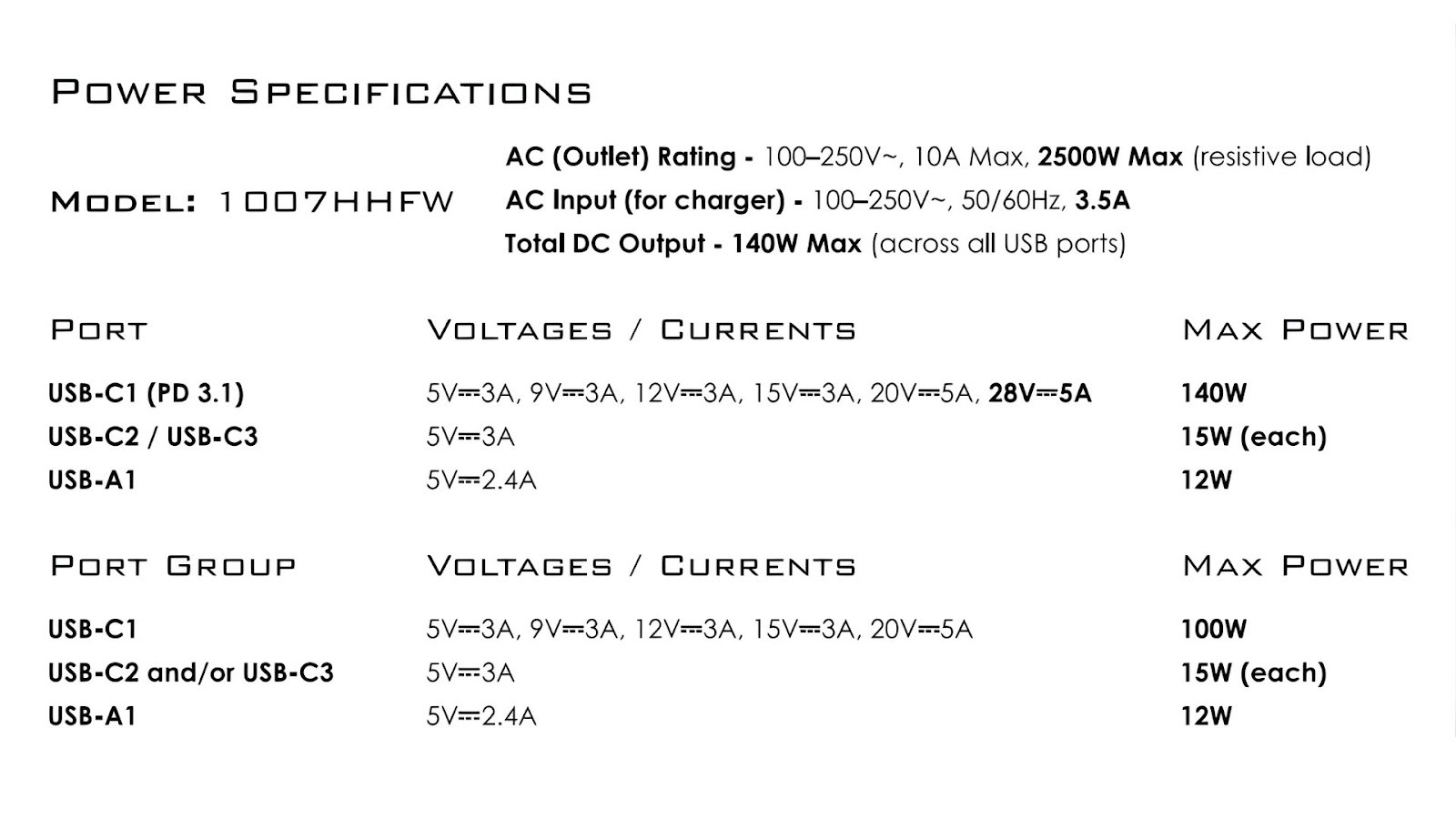

Power Specifications

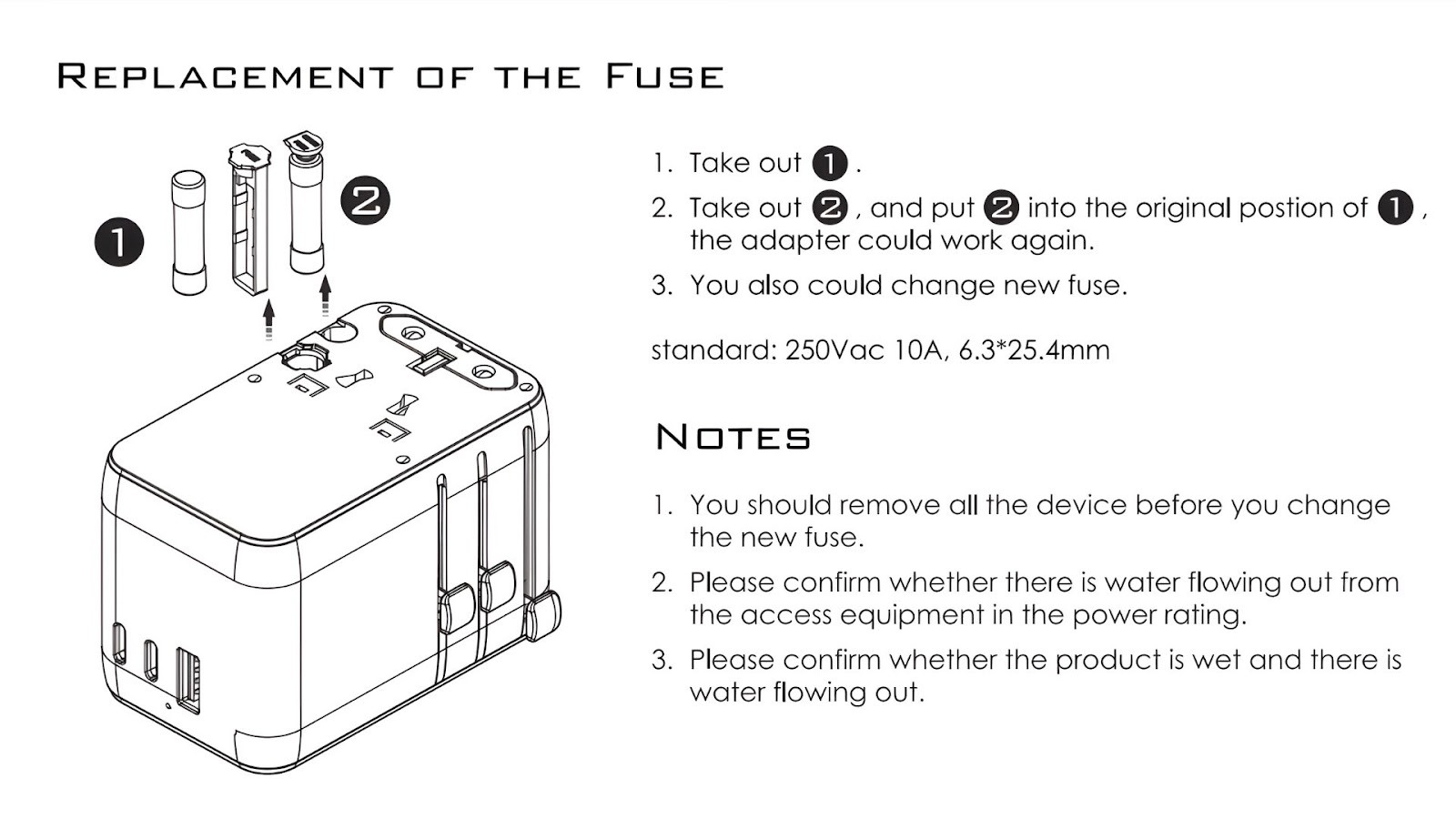

Fuse Replacement
Power & Safety Guidelines
- Use only with certified devices and chargers
- Do not expose to water, fire, or heat
- Stop use immediately if the product is damaged or overheating
- Keep out of reach of children
- Always ensure your connected outlet is dry and safe
Troubleshooting
| Issue | Solution |
|---|---|
| Adapter not powering devices | Ensure plug is fully extended and button reset is complete |
| No USB output | Unplug all devices → Reconnect one at a time → Check cable/device compatibility |
| Adapter not working after surge | Check/replace the internal fuse using the included spare fuse |
ELO Shield™ 2-Year Limited Warranty
Your Vagabond is backed by our ELO Shield Core Warranty — 2 years of protection against defects in materials and workmanship under normal use.
What’s Covered
- Manufacturing defects
- Functional failures during normal use
What’s Not Covered
- Damage from accidents, misuse, or tampering
- Cosmetic wear and tear (scratches, etc.)
- Unauthorized modifications or repairs
Warranty Registration
To activate your warranty:
- Open the ELO Unleashed App
- Go to Product Registration
- Enter your serial number
- Upload proof of purchase
Once registered, your 2-year warranty is active.
Filing a Warranty Claim
If you run into issues:
- Option 1: Submit a claim directly in the ELO Unleashed App
- Option 2: Visit www.help.eloesports.com/contact
Our team will assist you with troubleshooting and, if needed, a repair or replacement.
📝 Jurisdiction: Warranty disputes are governed by the laws of Toronto, Canada.
Shipping & Service Costs
Covered Claims
- ELO will send you a prepaid return label
- We’ll cover shipping both ways for approved warranty claims
Non-Covered Claims
If the issue is not covered (e.g., accidental damage), you’ll receive:
- A repair/replacement quote
You may be responsible for:
- Inbound shipping
- A restocking/evaluation fee (up to 15% of purchase price) if you decline the repair
Need help? Contact us at [email protected] or call +1 512-807-0031 — we’ve got your back.
